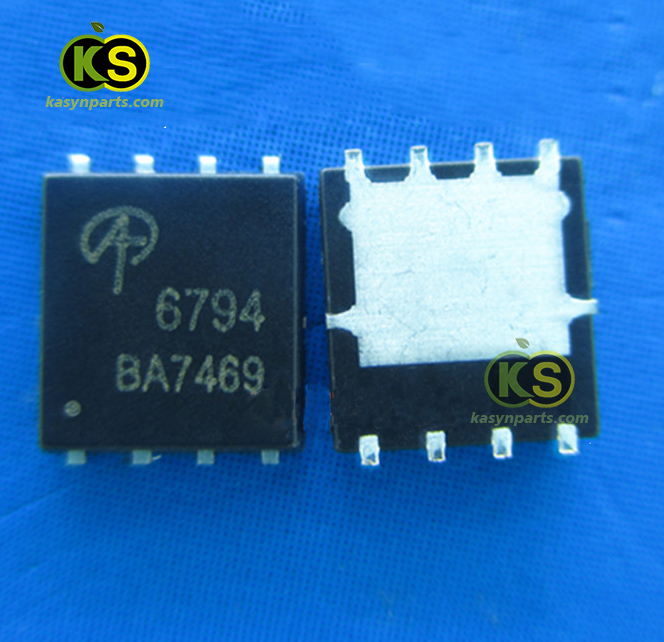

PS4 Pro console board 6794 AON6794 MOSFET QFN 8 replacment component
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current – Continuous Drain (Id) @ 25°C 39A (Ta), 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 2.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 37.5nC @ 10V
Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 2150pF @ 15V
FET Feature –
Power Dissipation (Max) 6.2W (Ta), 42W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-DFN (5×6)
