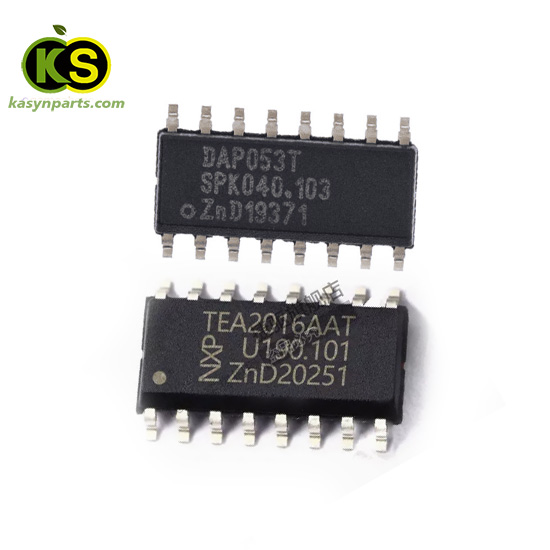

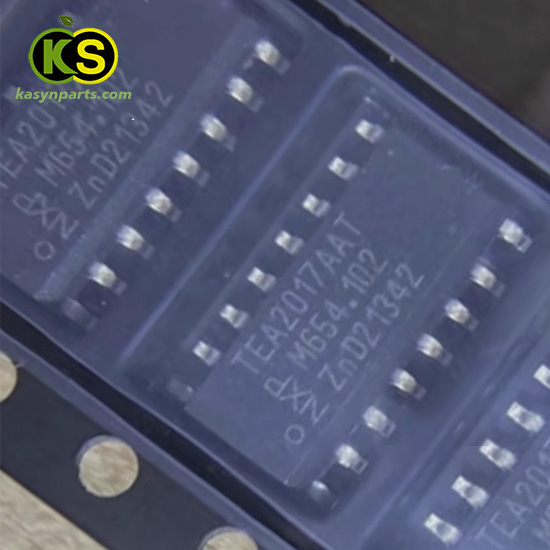

PlayStation 5 PS5 DAP053T SOP-16 TEA2016AAT TEA2017AAT Power manage IC PMIC

$2.15$15.80

SKU: 41610 Category: Tags: , , ,
Guaranteed Safe Checkout

PlayStation 5 PS5 DAP053T SOP-16 Power manage IC PMIC



The good news is that after some attempts by some masters, they successfully found a replacement for DAP053T.

TEA2016AAT 16 leads; body width 3.9 mm
some parameters

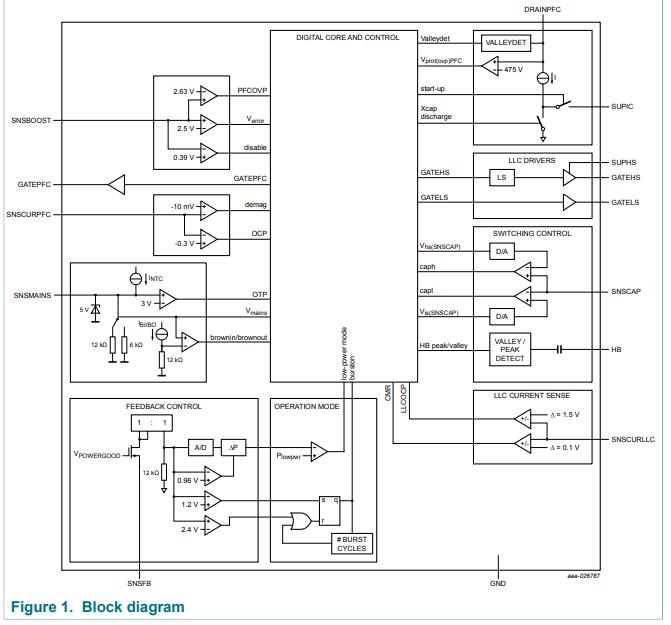

Complete functionality of LLC and PFC controller in single small-size SO16 package
• Integrated high-voltage start-up
• Integrated drivers and high-voltage level shifter (LS)
• High-side driver directly supplied from the low-side driver output (patent nr
82059363US01)
• Accurate boost voltage regulation
• Integrated X-capacitor discharge without additional external components
Protection features
• Independently configurable levels and timers
• All protections can independently be set to latched, safe restart, or latched after several
attempts to restart (Patent 82096505US01)
• Supply undervoltage protection (UVP)
• Overpower protection (OPP)
• Internal and external overtemperature protection (OTP)
• Capacitive mode regulation (CMR)
• Accurate overvoltage protection (OVP)
• Overcurrent protection (OCP)
• Inrush current protection (ICP)

Weight 0.05 kg
Shape

A, B, C
