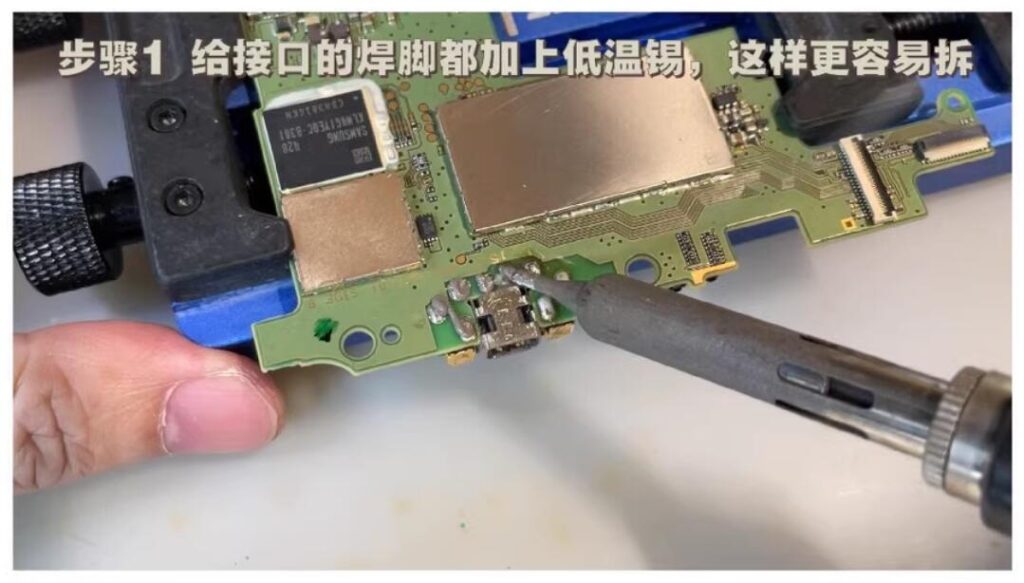

Step 1; Add low-temperature tin to the solder pins of the interface, which makes it easier to disassemble.

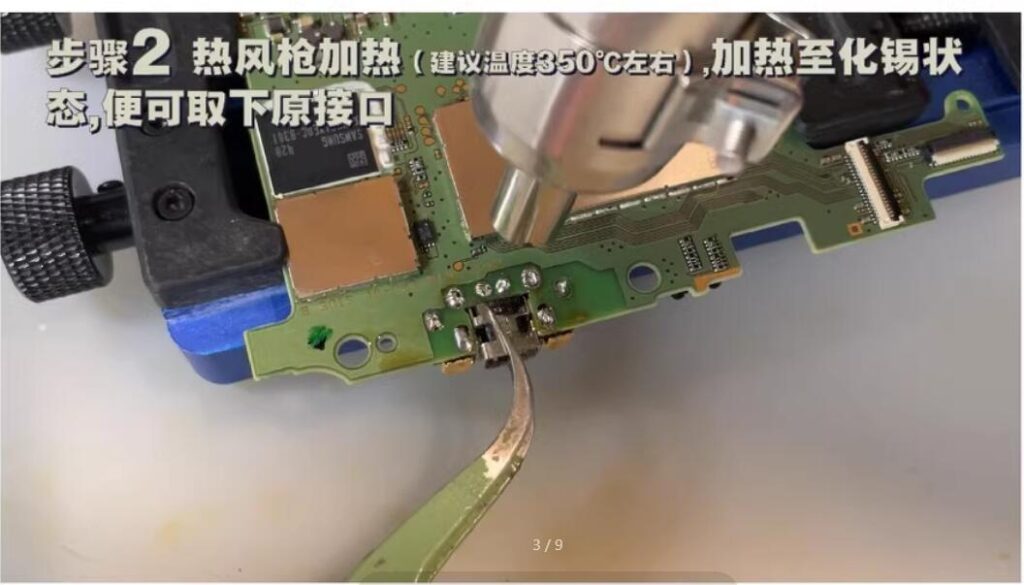

Step 2: Heat with a hot air gun (recommended temperature 350 degrees), heat to the tin state, and then you can remove the original interface

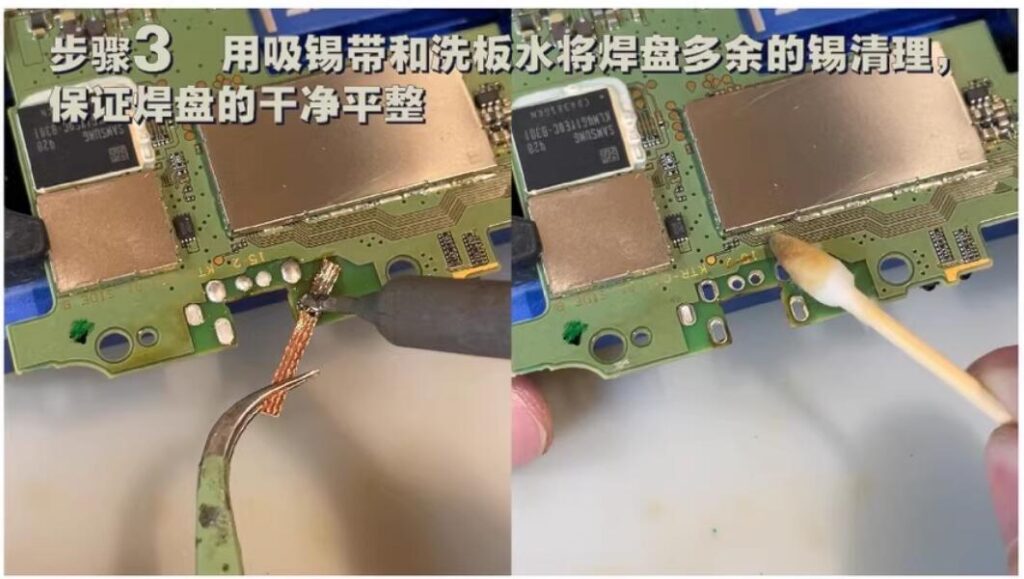

Step 3: Use tin-washing tape and board-washing water to clean the excess tin on the pad to ensure that the pad is clean and flat

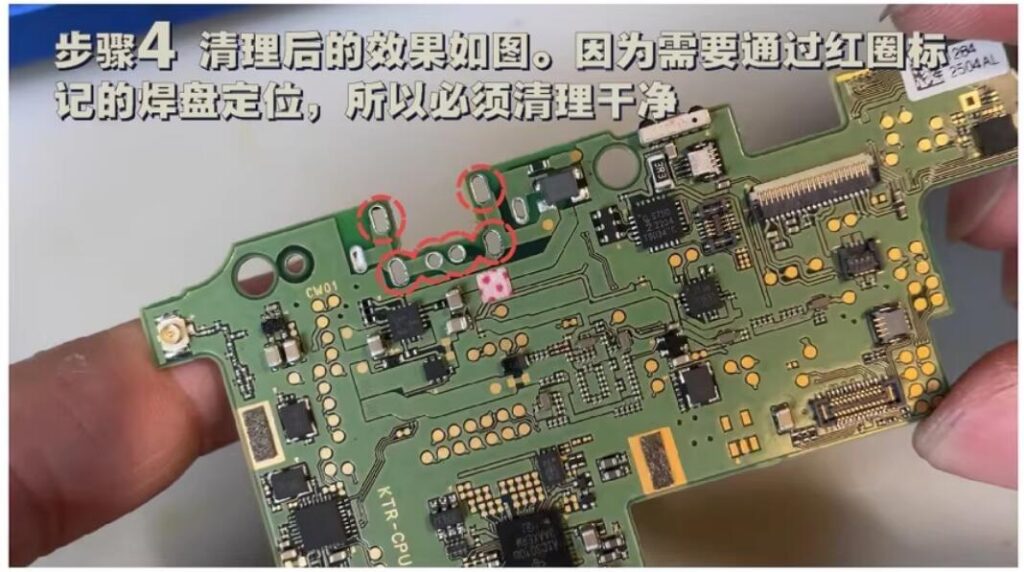

Step 4: The effect after cleaning is as shown in the figure. Because it needs to be positioned by the pad marked with a red circle, it must be cleaned

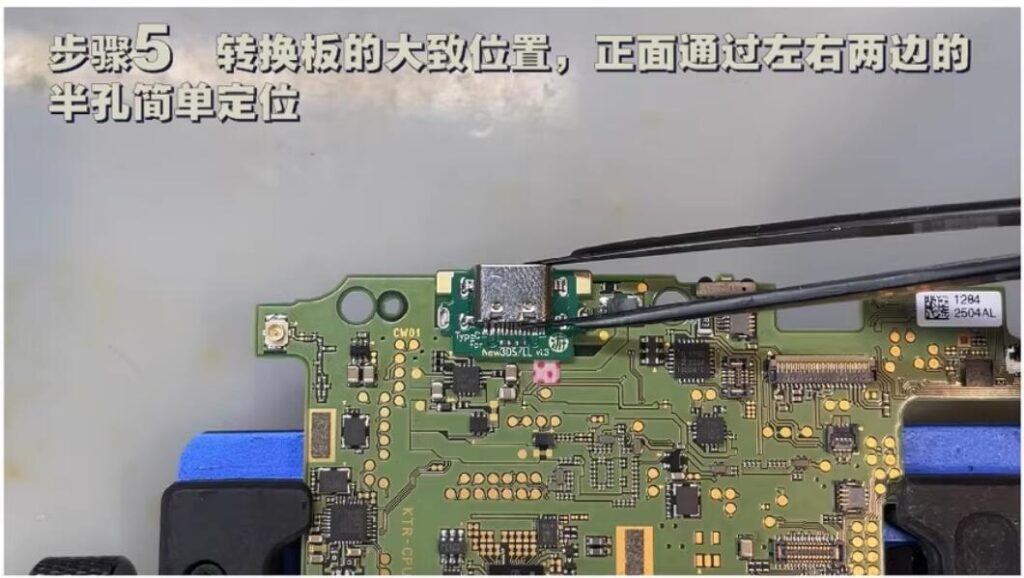

Step 5: Turn the USB board and simply position it through the holes on the left and right sides on the front.
Nintendo NEW 3DS NEW3DSXL 2015 USB C TypeC Custom Kit

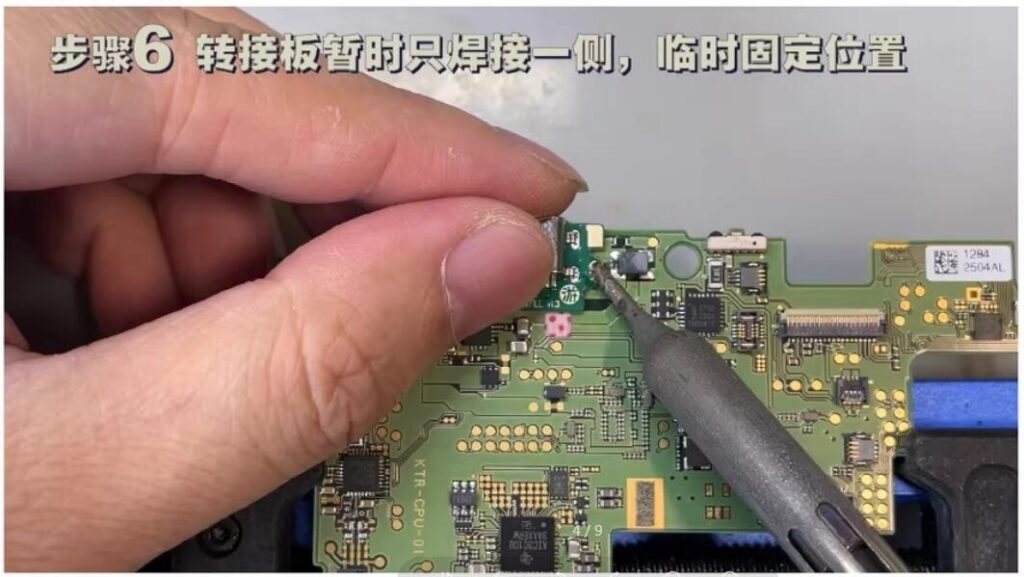

Step 6: Only solder one side of the USB board as a temporary fixed position

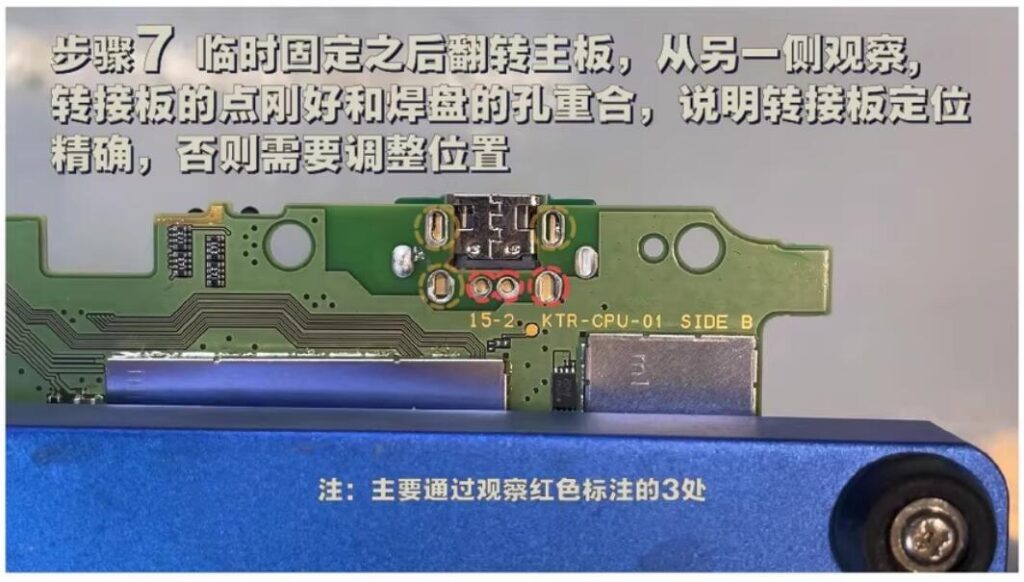

Step 7: After fixing, turn it to the other side and observe whether the solder joint and the hole are aligned, otherwise a slight adjustment is required. Make the hole position accurate (mainly through the 3 positions marked in red)

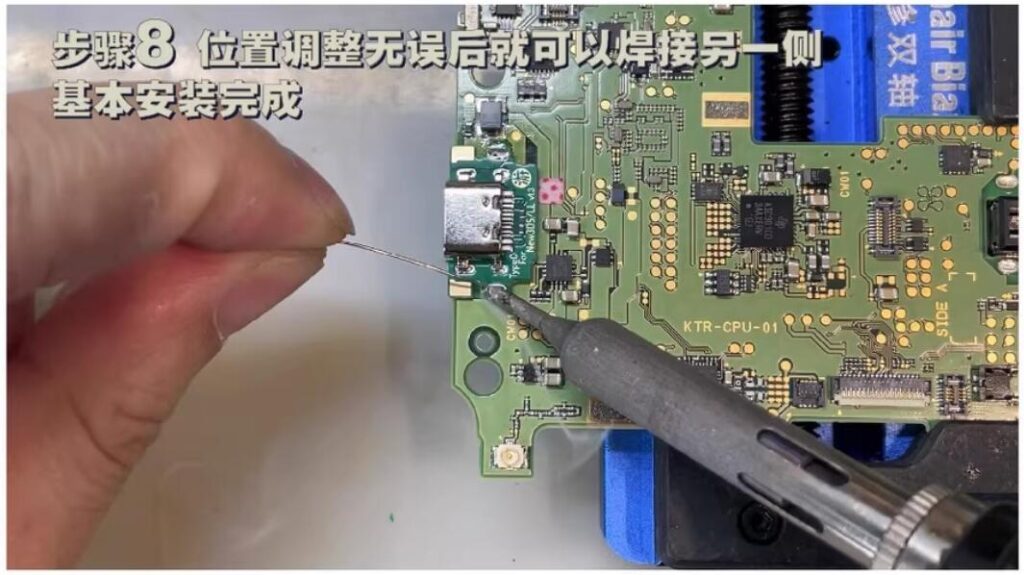

Step 8: After the position is adjusted, you can solder the other side. In this way, the welding work is basically completed

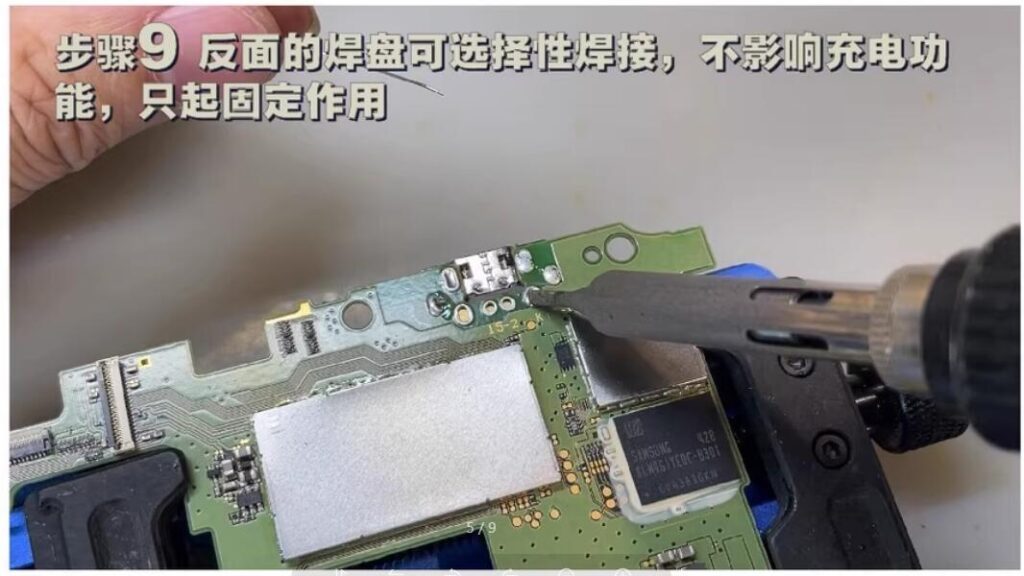

Step 9: The pad on the back can be selectively soldered, which does not affect the charging function and is only used for fixing.

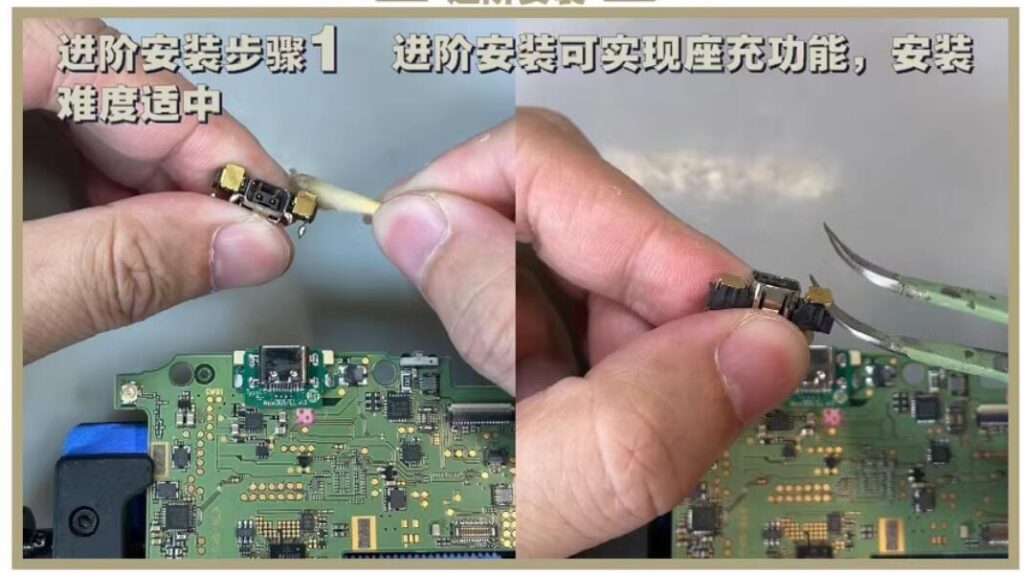

Step 10: This step is an advanced skill, and the installation difficulty increases by one level. The function is to realize the charging function. If this function is not needed, ignore this step. Remove the copper metal sheet outside the original charging port

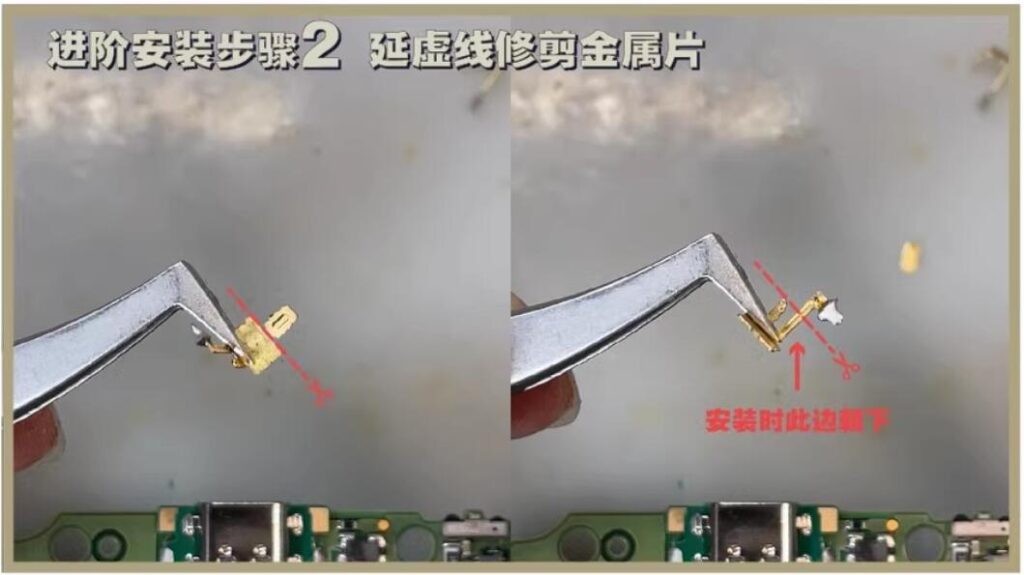

Step 11: Trim the metal sheet along the dotted line

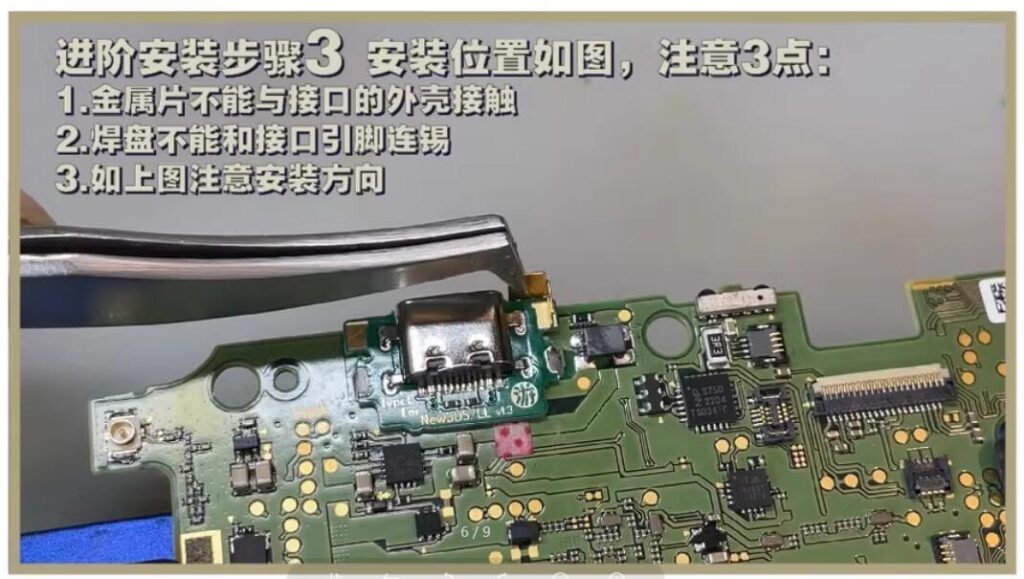

Step 12: The installation position is as shown in the figure, pay attention to three
The metal sheet cannot contact the shell of the interface
The soldering pad cannot be tinned with the interface pin
Pay attention to the installation direction as shown above

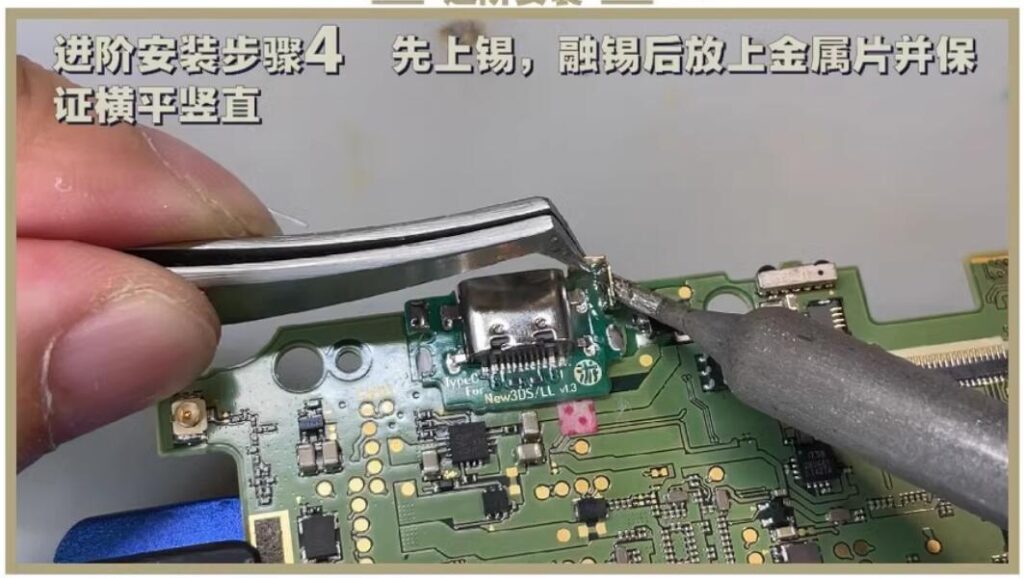

Step 13: Tin first, put the metal sheet after melting the tin, and pay attention to the position of the metal sheet
Nintendo NEW 3DS NEW3DSXL 2015 USB C TypeC Custom Kit

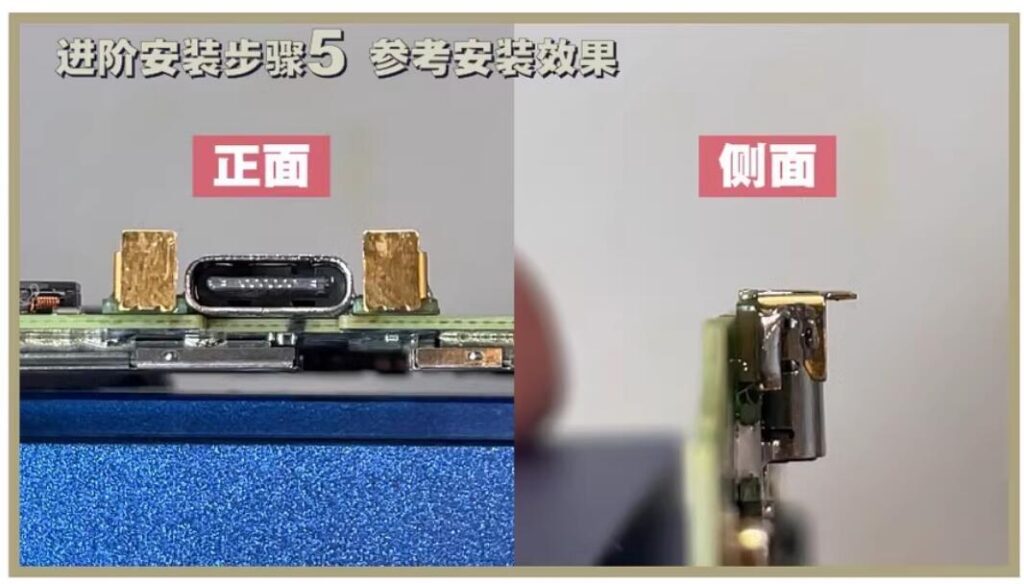

Step 14: The effect of the front and side after installation
If the charging function is not required, steps 10-14 can be ignored

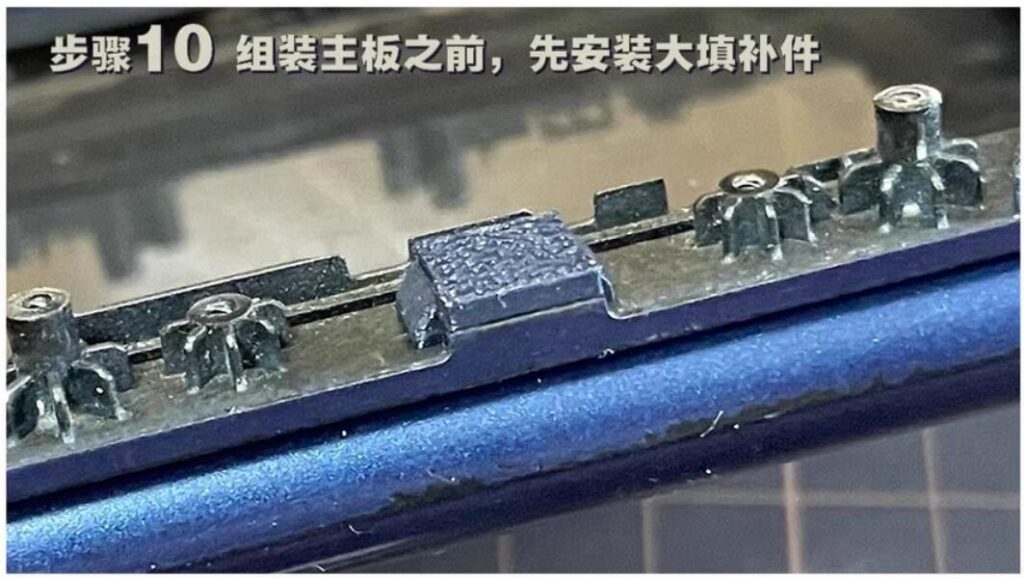

Step 15: Before assembling the motherboard, install the large filling piece first

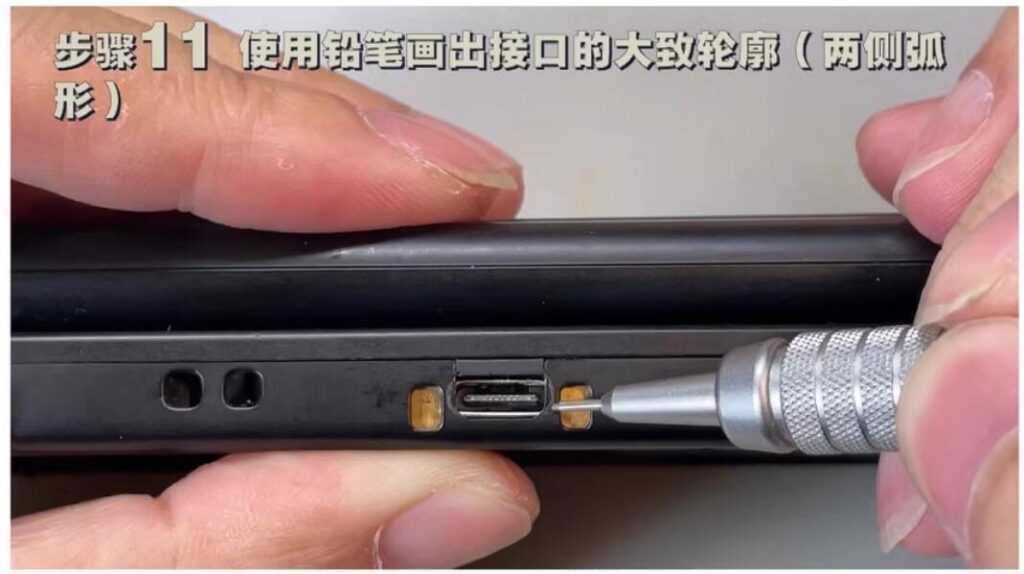

Step 16: Use a pencil to draw the general outline of the interface and the arc on both sides
Nintendo NEW 3DS NEW3DSXL 2015 USB C TypeC Custom Kit

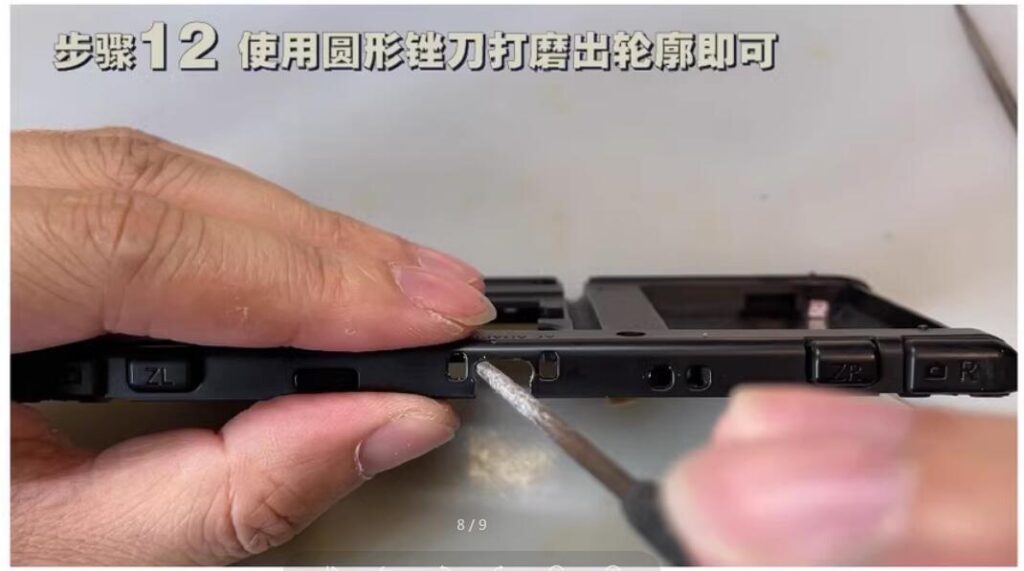

Step 17: Use a prototype file to grind out the outline

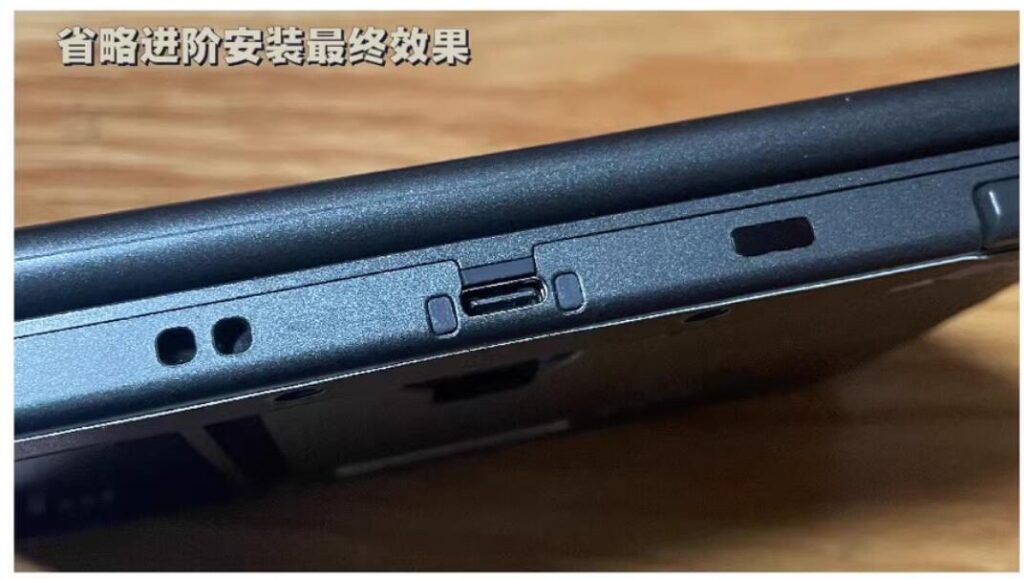

Step 18: The final effect of the installation without the charging function

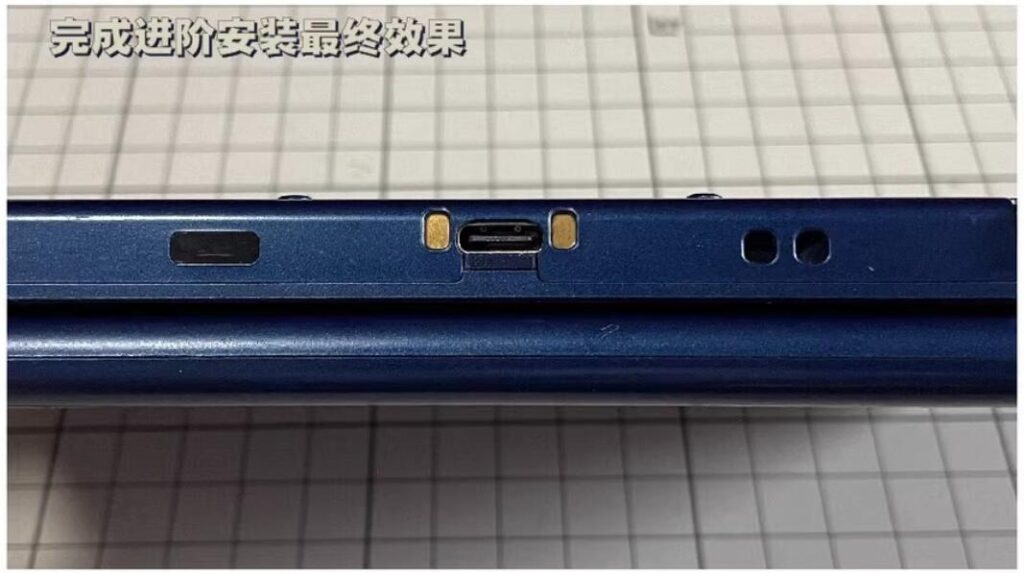

Step 19: The final effect of installing the charging function
